Digger Attachments
Assembly layout for a Multi Coupler, designed and developed for JB International.
Engineering solutions through innovation and experience
About Us
Creatrix Engineering Design Limited has been delivering innovative engineering solutions since 1995. We specialize in the design and supply of custom machinery and equipment for unique and specialized applications. Using advanced tools like Solidworks and AutoCAD, we provide detailed 3D modeling, CAD drafting, stress analysis, and tool design services.
Our team combines practical engineering experience with a strong foundation in systems control and mechanical design. We pride ourselves on creating high-quality, cost-effective solutions that improve product quality, production efficiency, and overall competitiveness.
Whether it's product development, machinery design, or process optimization, we’re committed to meeting and exceeding customer expectations through smart, reliable, and forward-thinking engineering.

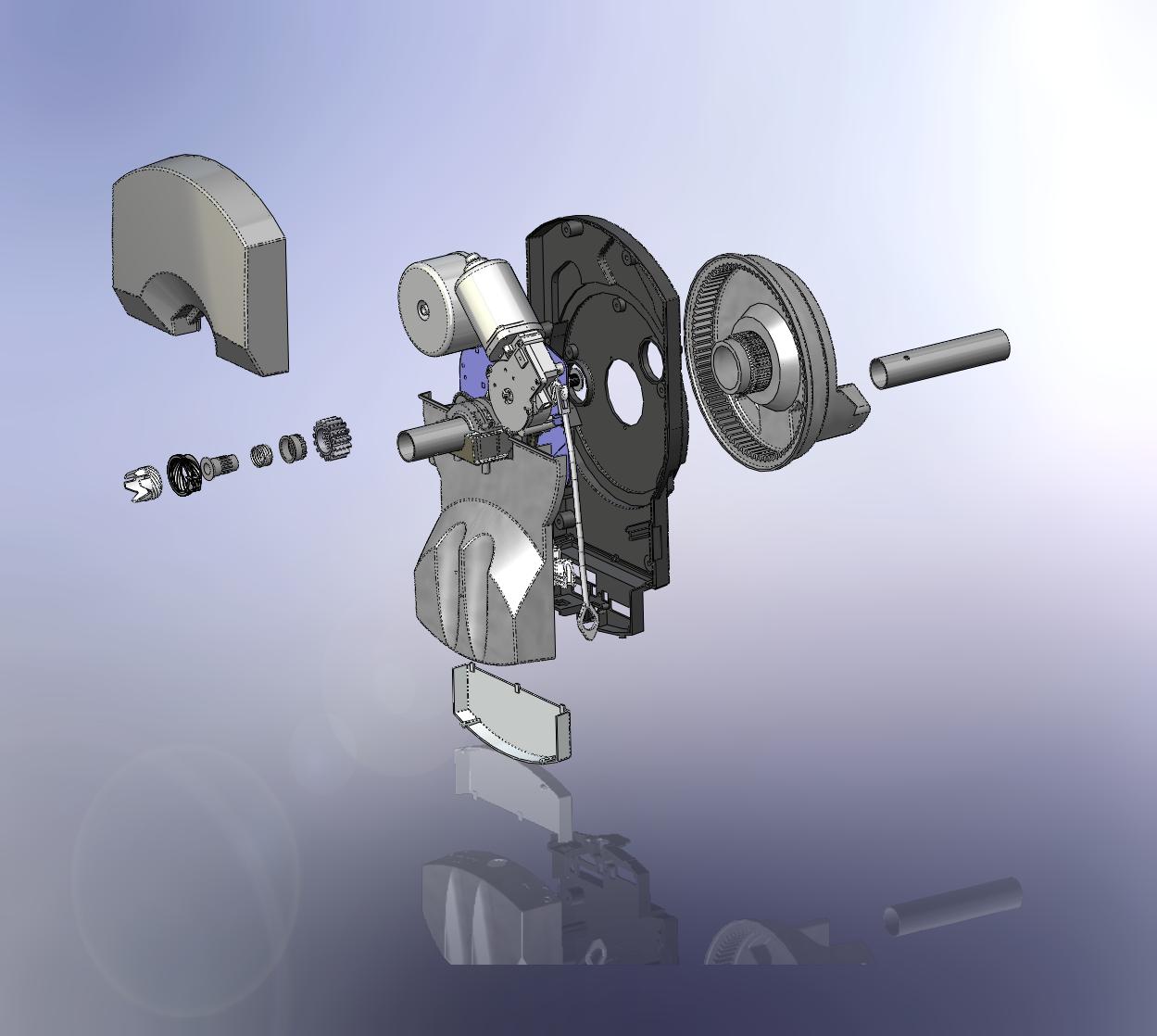

Garage Door Openers
Custom-designed roller door opener created for Merlin.
Stress Analysis
Structural evaluation of a JB Attachments coupler under multiple load conditions.

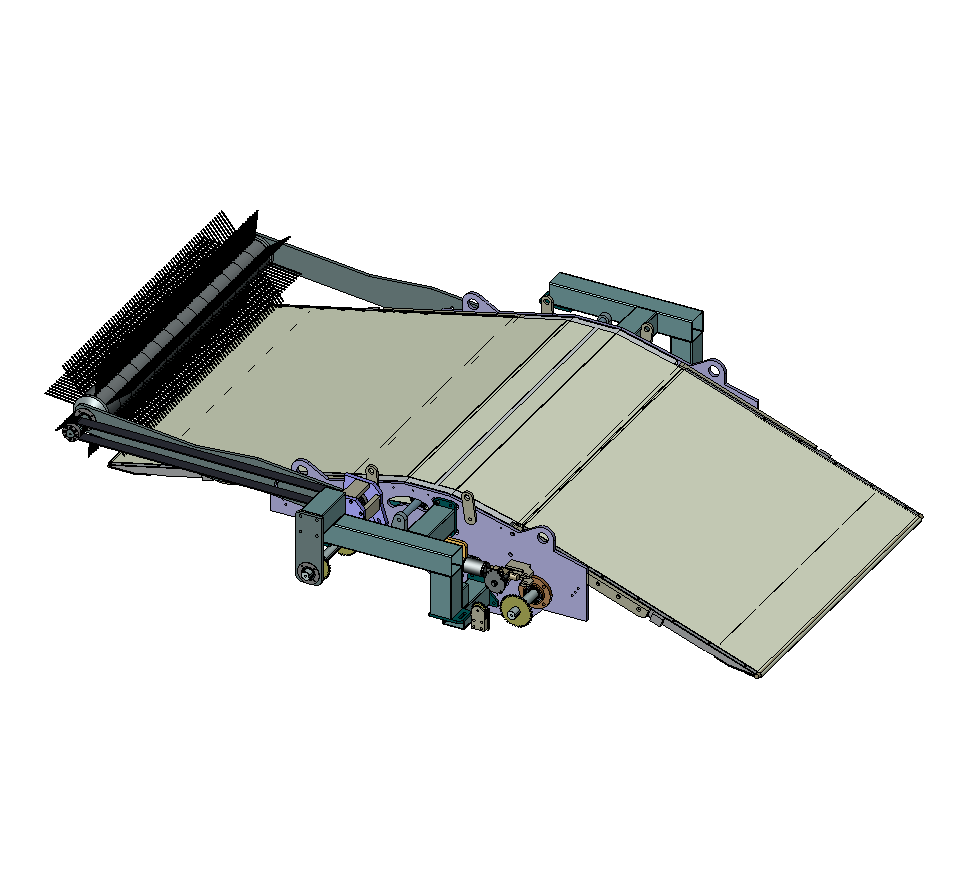

Conveyor Systems
Peeling conveyor system used in AutoBake’s serpentine bread ovens.

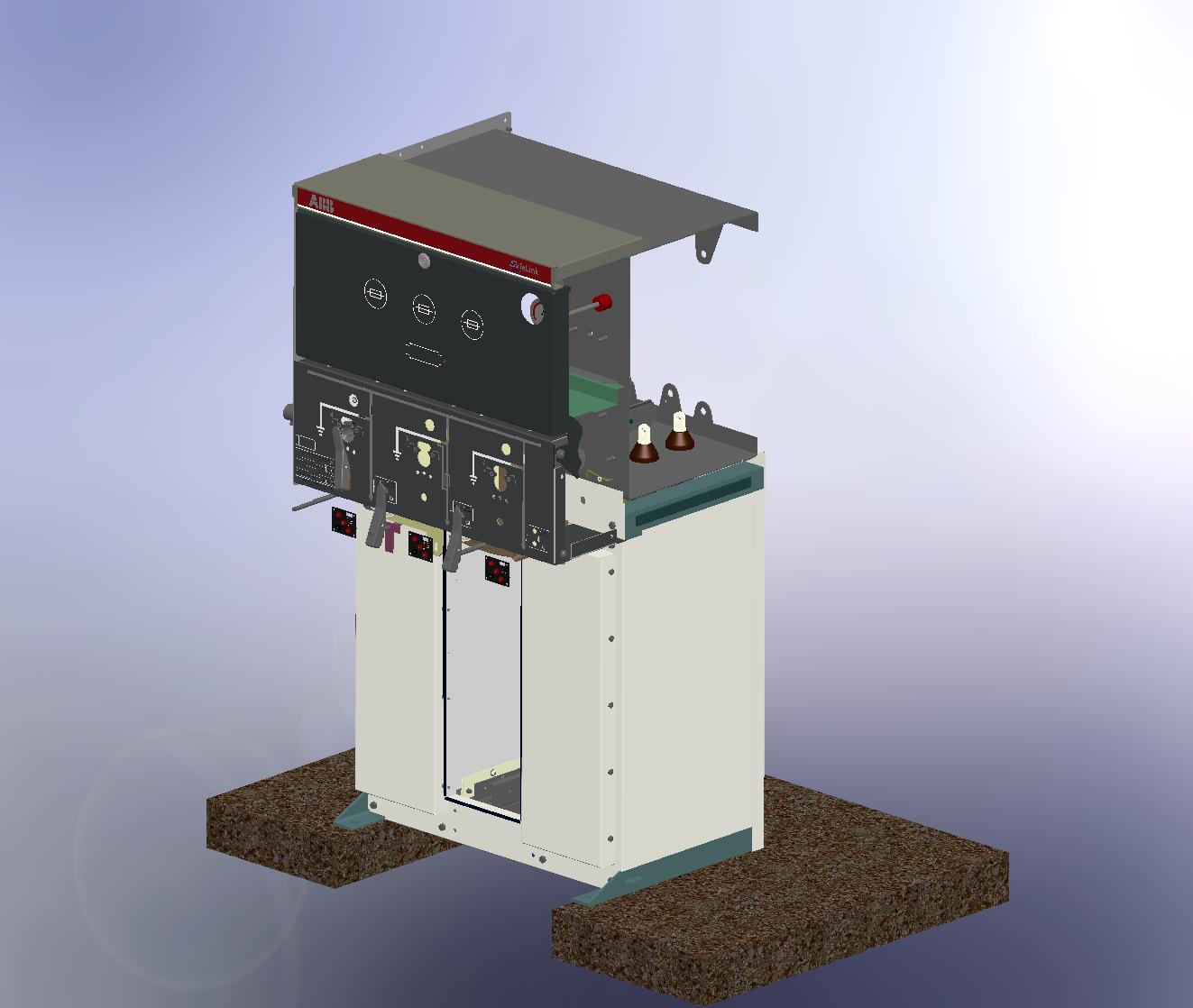

High Voltage Switchgear
Development of ABB’s gas-filled switchgear replacing oil-filled 12KV Ring Main units—commonly installed in street-side green steel boxes.
Vending Machines
Retro-style vending machines designed for National Vending.

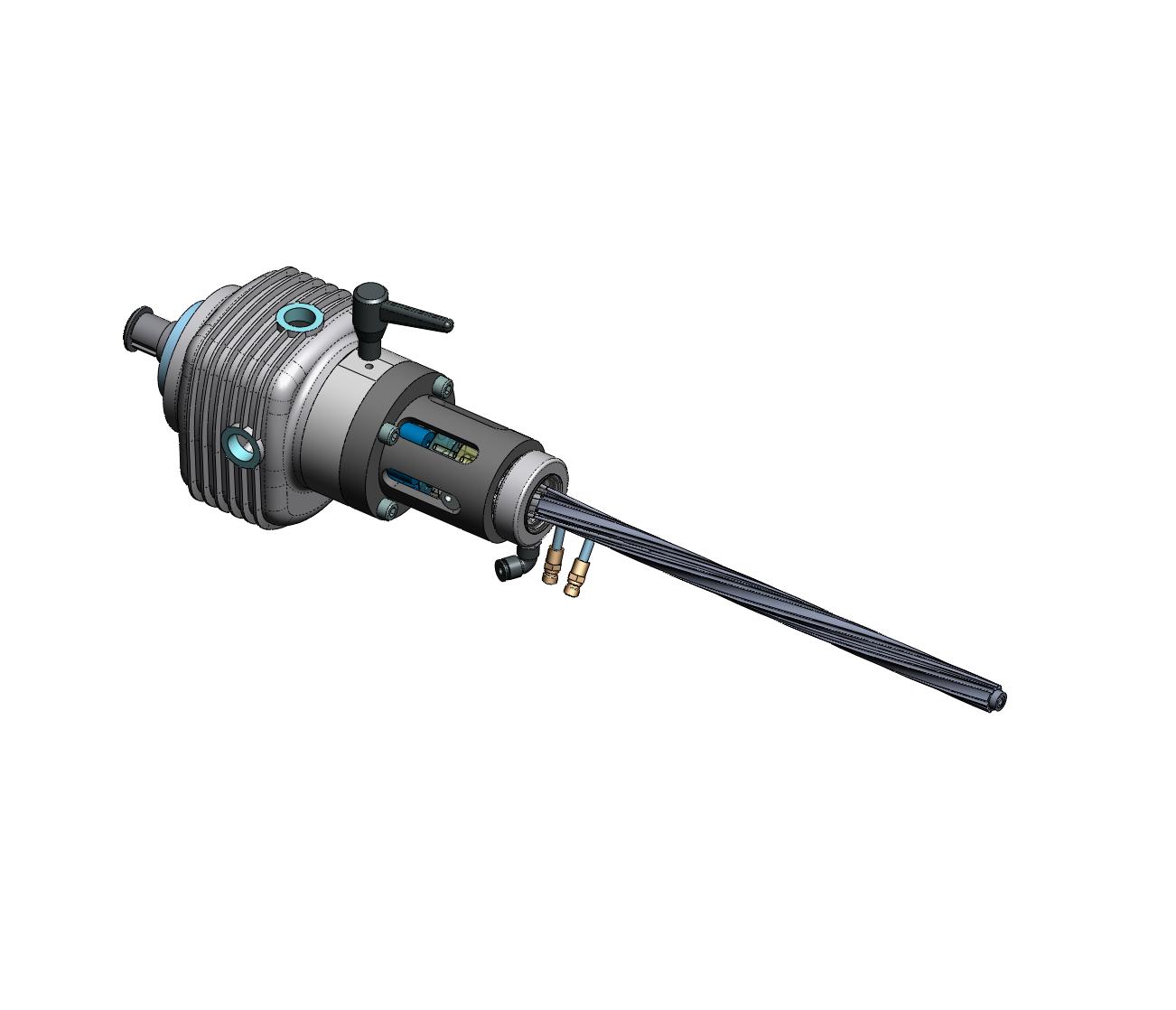

Gearboxes and Mandrels
High-speed gearbox with a single input and six flexible shaft outputs for spiral tube manufacturing.

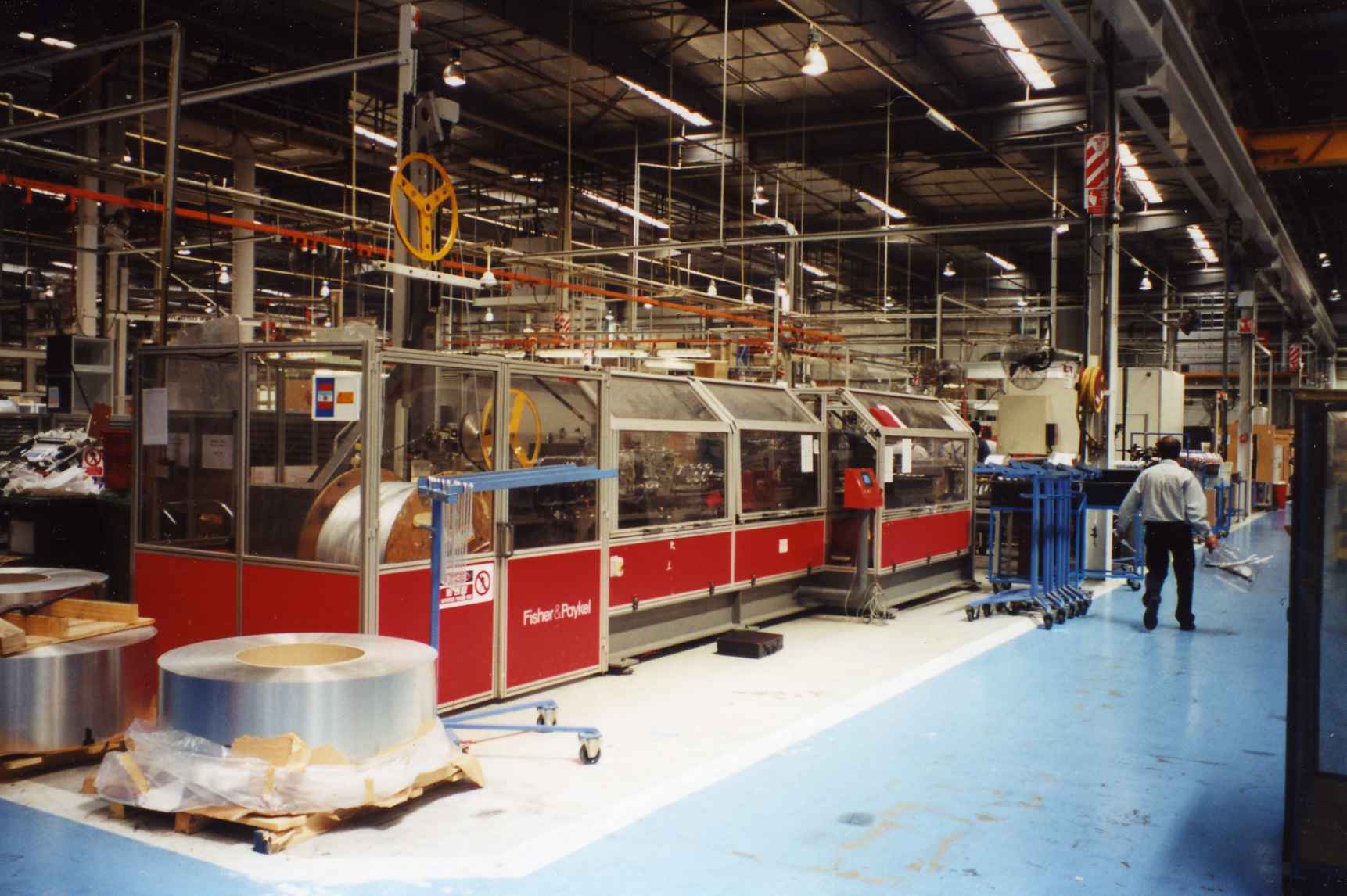

Complete Production Line
Refrigeration evaporator production line for Fisher & Paykel, featuring a high-speed tube bender, cooling fin tooling, and assembly equipment—all designed by CEDL.
Serpentine Tube Benders
Tube bender developed for Fisher & Paykel’s refrigerator manufacturing—used for short-run product lines.
Foaming Machines
Fridge door foaming equipment featuring innovative, quick-change triangle moulds—an urgent solution that remains in use today.
Automated Assembly Machines
Adjustable compressor inserter for all fridge models and configurations—designed for Fisher & Paykel.
Trimming Machines
Vacuum-formed liner trimming system with adjustable slicing rollers—accommodating multiple fridge models.
Complex Tools
High-precision multi-stage tooling for Fisher & Paykel, engineered for demanding production needs.
Complex Press Tools
Press tooling system with integrated feeder and cut-off extractor—designed by CEDL for streamlined automation.

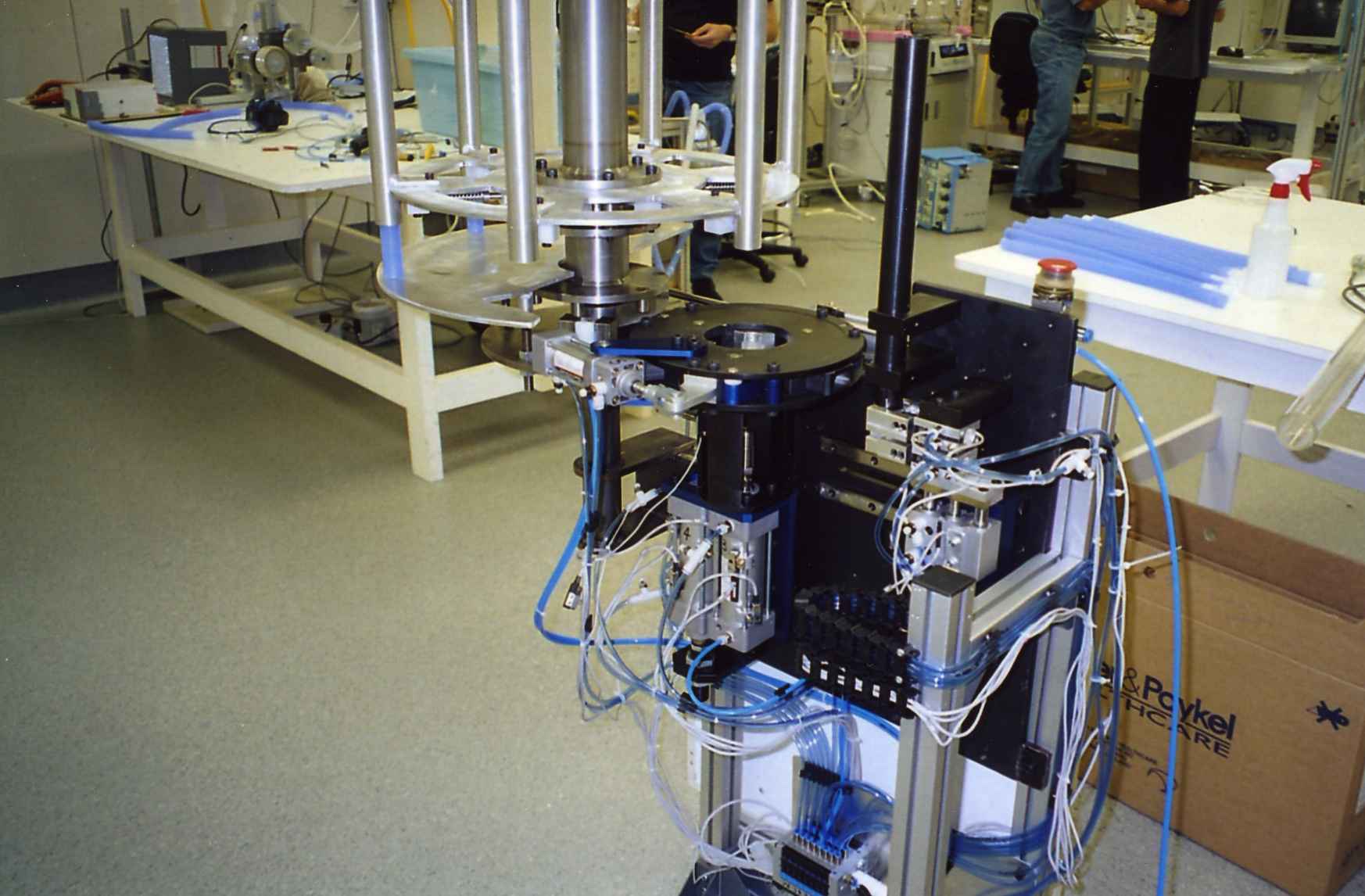

Automated Assembly Equipment
Tube and fitting inserter for Fisher & Paykel Healthcare—automated for precision and speed.

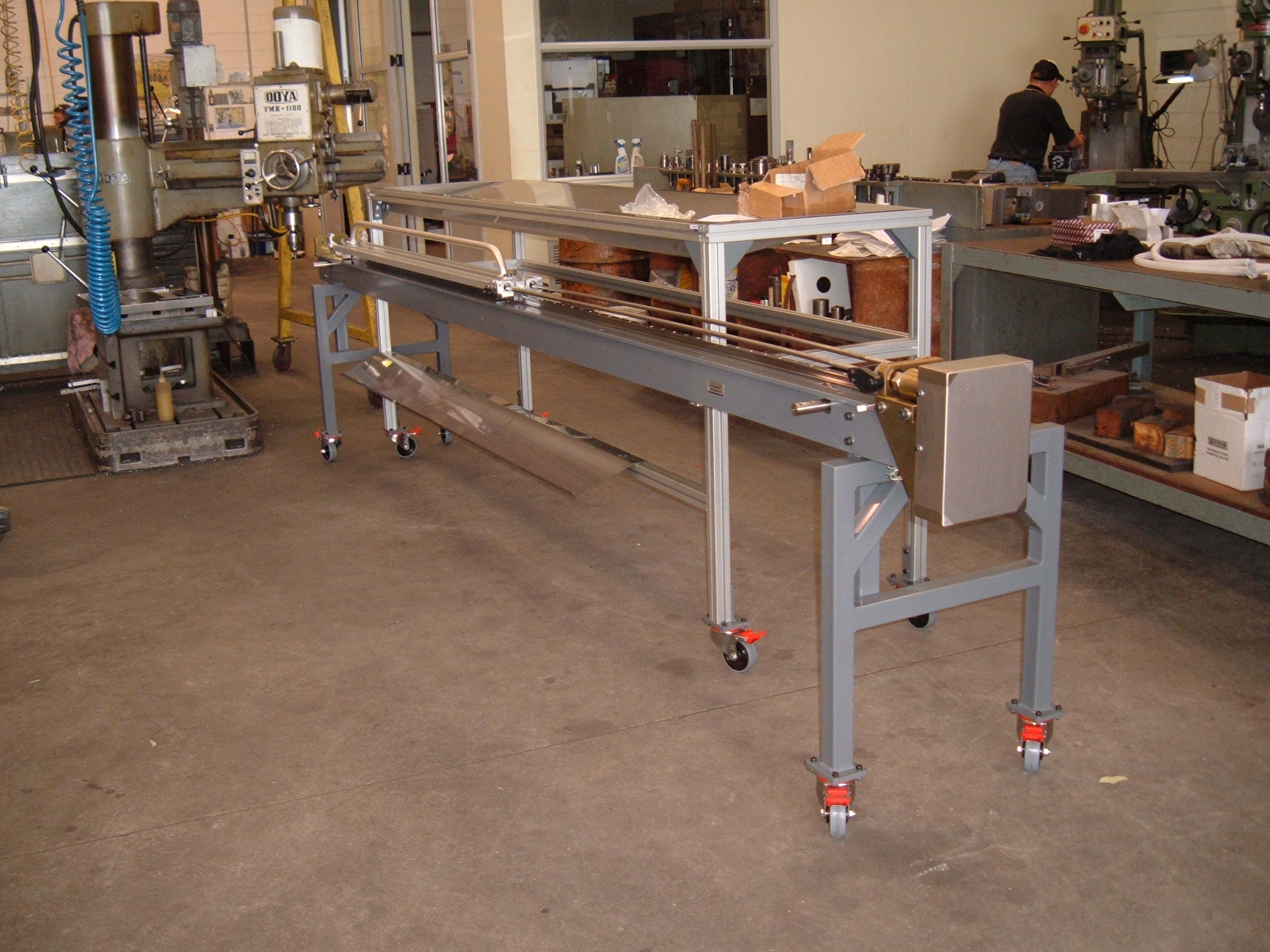

Assembly Line Equipment
Machine for inserting wire inside tubing and attaching end fittings—custom-designed for production efficiency.
Contact Us
We’d love to hear from you. Reach us using any of the following methods:
Phone: (09) 522 1581 or 027 488 5987
Fax: (09) 522 1581
Email: info2008@cedl.co.nz
Mailing Address:
Creatrix Engineering Design Ltd
PO Box 87-144, Meadowbank, Auckland, New Zealand
